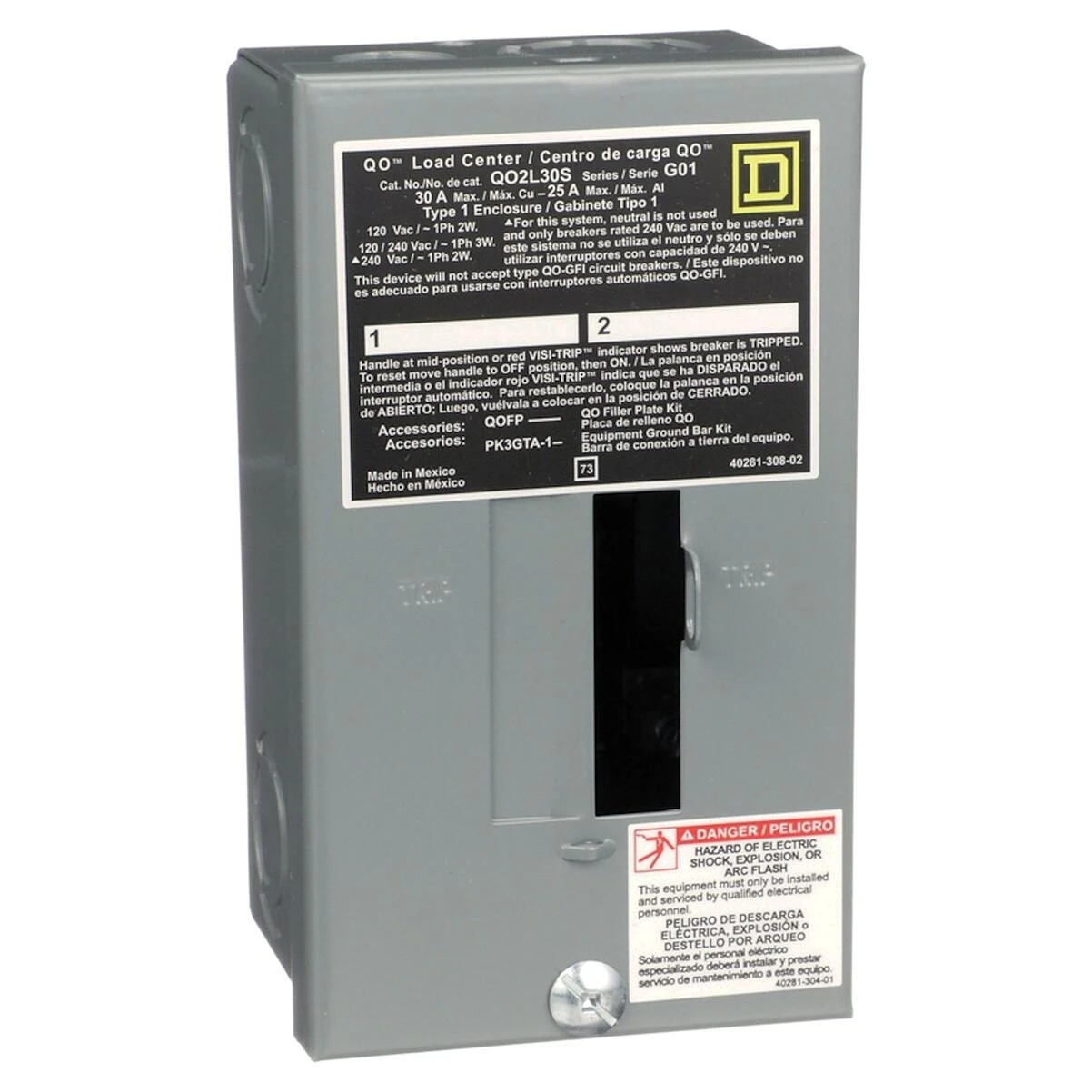

Square D QO2L30SCP Main Lug Load Center, 30-Amp, 2-Space/2-Circuit

A main lug load center is an add-on panel used to expand electrical capacity when additional circuits are needed beyond what your main breaker load center provides. The Square D QO2L30SCP connects directly to your existing main breaker panel, allowing you to safely distribute power to two additional circuits without adding a new main breaker. This indoor unit accommodates both overhead and underground feed applications, making it adaptable to various installation requirements.

This 30-amp, 2-space load center simplifies electrical upgrades by offering a straightforward, surface mount design that enables quick installation. The unit comes complete with a doorless surface mount cover and factory-installed main lugs, eliminating the need to source additional components. The simple mounting approach keeps wiring work clean and organized.

Features and Benefits

• Two Circuit Positions: Provides a straightforward way to increase electrical capacity without replacing your main panel.
• Complete Package: Includes doorless surface mount cover and factory-installed main lugs, so you have everything needed for installation.
• Surface Mount Design: Simple design enables quick installation with organized wiring.
• Flexible Feed Options: Accommodates both overhead and underground feed applications, adapting to your electrical configuration.
• UL Listed: Certified for safety and performance.

Specifications

• Brand: Square D
• Model: QO2L30SCP
• Amperage: 30 amp
• Spaces/Circuits: 2 space, 2 circuit
• Phase: Single phase, 3 wire
• Installation: Indoor, surface mount
• Knockouts: 1 inch maximum on top and bottom of enclosure
• Enclosure Type: NEMA 1
• Certification: UL listed
