Square D HOM816L125PC Homeline Load Center, 125-Amp, 8-Space, 16-Circuit

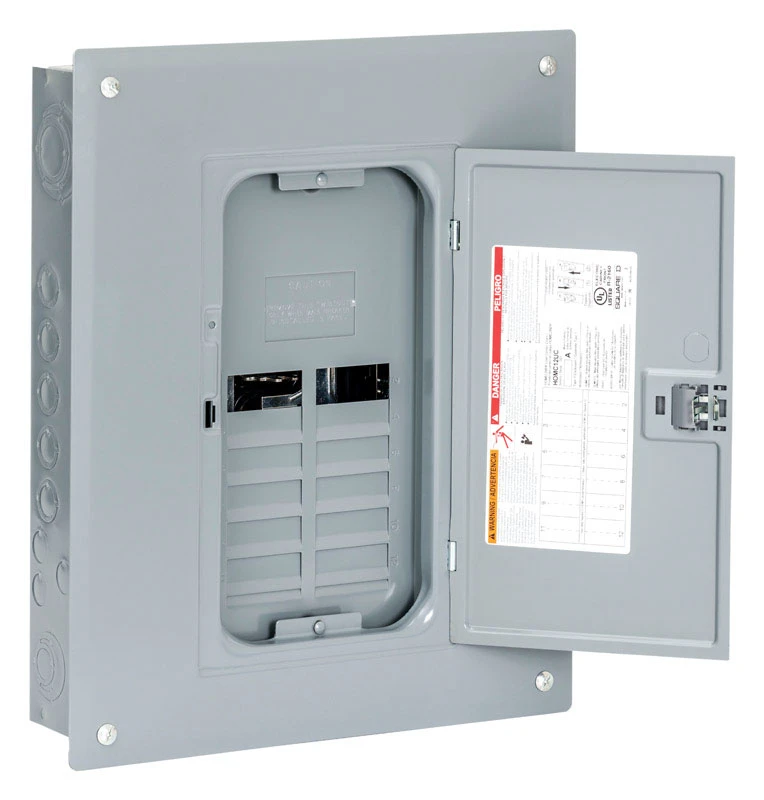

The Square D Homeline HOM816L125PC is a main lug load center designed for residential and light-commercial electrical applications. This indoor distribution panel provides a compact yet robust solution for managing household power, with a 125-amp rating and capacity for up to 16 individual circuits. Its NEMA Type 1 enclosure and plated aluminum bus bar deliver durability and reliable performance for modern homes and connected devices.

This load center simplifies electrical installation and future upgrades. The plug-on neutral design reduces wiring complexity and speeds setup, while the convertible design allows you to upgrade to a main breaker configuration later using a QOM1 main breaker (sold separately). Whether you need a flush-mount or surface-mount installation, the combination cover accommodates both overhead and underground feed options, giving you flexibility in how power enters your home.

Features and Benefits

• 125-Amp Rating: Delivers ample capacity for typical household electrical loads while maintaining safety and compliance with modern power demands.
• 8-Space, 16-Circuit Capacity: Accommodates up to eight full-size circuit breaker spaces and 16 individual single-pole breaker slots, offering flexibility as your electrical needs expand.
• Plug-On Neutral Design: Streamlines wiring connections and reduces installation time and potential errors compared to traditional configurations.
• Convertible Architecture: Ready for future upgrade to a main breaker load center by adding a QOM1 main breaker, extending the panel's useful life.
• Flexible Mounting: Combination flush-mount and surface-mount cover allows seamless wall integration or direct surface installation, adapting to your space.
• Multiple Grounding Options: Provides space for three #10–14 gauge grounds on both the ground and neutral bars for secure and compliant grounding paths.

Specifications

• Brand: Square D
• Model: HOM816L125PC
• Amperage: 125 A
• Circuit Capacity: 8-Space, 16-Circuit
• Enclosure Type: NEMA Type 1, indoor use
• Bus Bar: Plated aluminum
• Cover: Combination flush/surface mount
• Feed Options: Overhead or underground
• Grounding: Space for three #10–14 grounds on ground and neutral bars
• UL Listed
• Convertible to main breaker configuration with QOM1 (sold separately)
• Compatible with plug-on secondary surge arrestor (sold separately)
