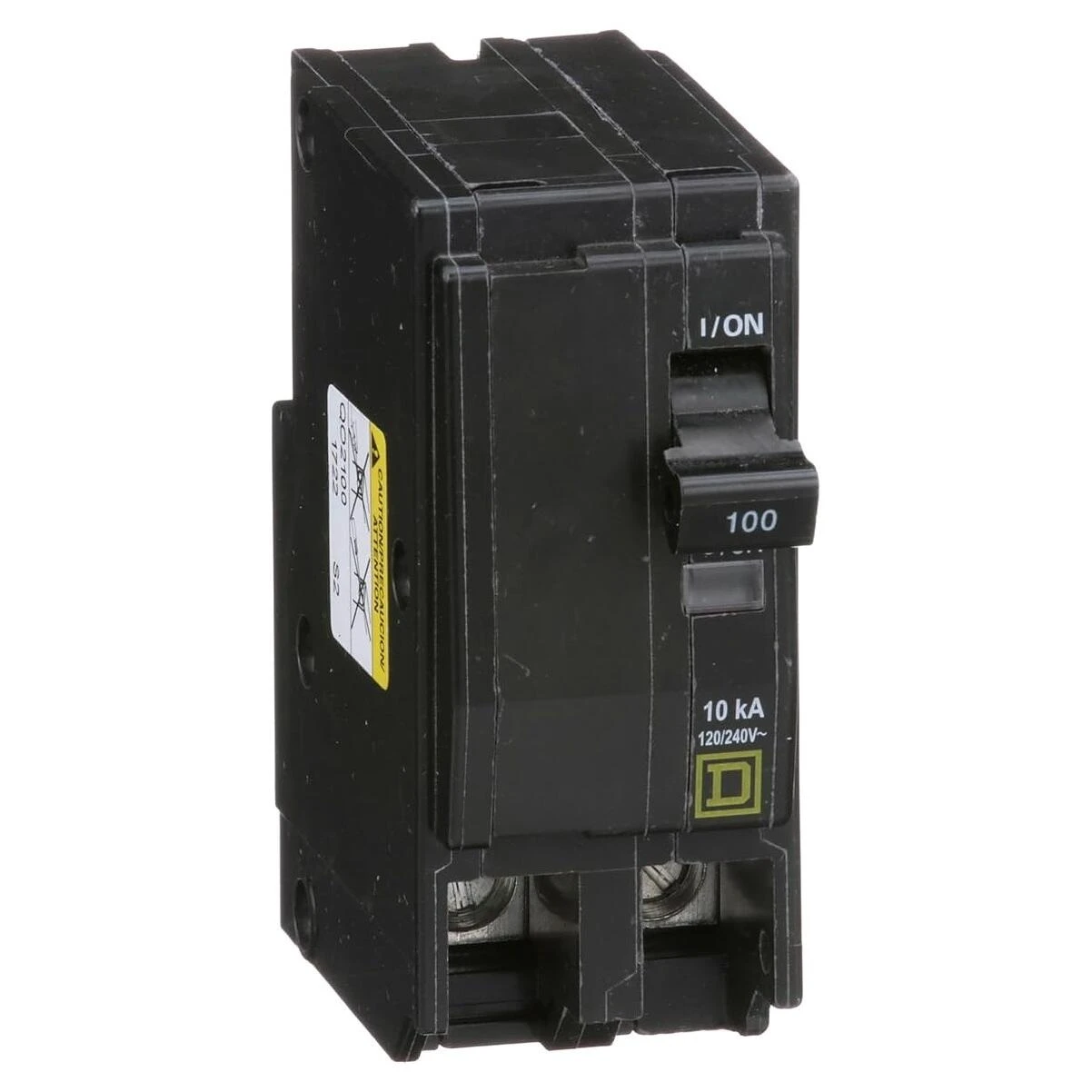

Square D QO2100CP 100-Amp Double-Pole Circuit Breaker, 120/240 VAC

The Square D QO2100CP is a 100-amp double-pole circuit breaker designed to protect your electrical system from overloads and short circuits. This thermal-magnetic breaker is compatible with QO load centers, CSED panels, and NQOD panel boards. When an overload or fault occurs, the breaker automatically trips to disconnect power and prevent equipment damage.

The QO2100CP stands out with Square D's exclusive Visi-Trip indicator—a highly visible red flag that snaps to the midpoint between OFF and ON when the breaker trips. In a load center containing multiple circuit breakers, this red indicator makes it easy to spot which breaker has tripped without having to check each one individually.

Features and Benefits

• Visi-Trip Indicator: The red trip indicator provides instant visual confirmation of a tripped breaker, allowing you to quickly locate the problem in your electrical system.
• 10,000 AIR Rating: The ampere interrupting rating helps prevent equipment damage during electrical overloads and short-circuit events.
• Plug-On Design: The breaker mounts directly into compatible QO load centers for straightforward installation.
• UL-Listed and ANSI-Certified: Safety-tested and certified for reliable electrical protection that meets industry standards.
• Wide Compatibility: Works with QO load centers, CSED equipment, and NQOD panel boards.
• Limited Lifetime Warranty: Backed by Square D's warranty for long-term confidence.

Specifications

• Brand: Square D
• Model: QO2100CP
• Amperage: 100 A
• Poles: 2 (Double-Pole)
• Voltage Rating: 120/240 VAC
• Interrupting Rating (AIR): 10,000 A
• Trip Type: Thermal Magnetic
• Design: Miniature plug-on
