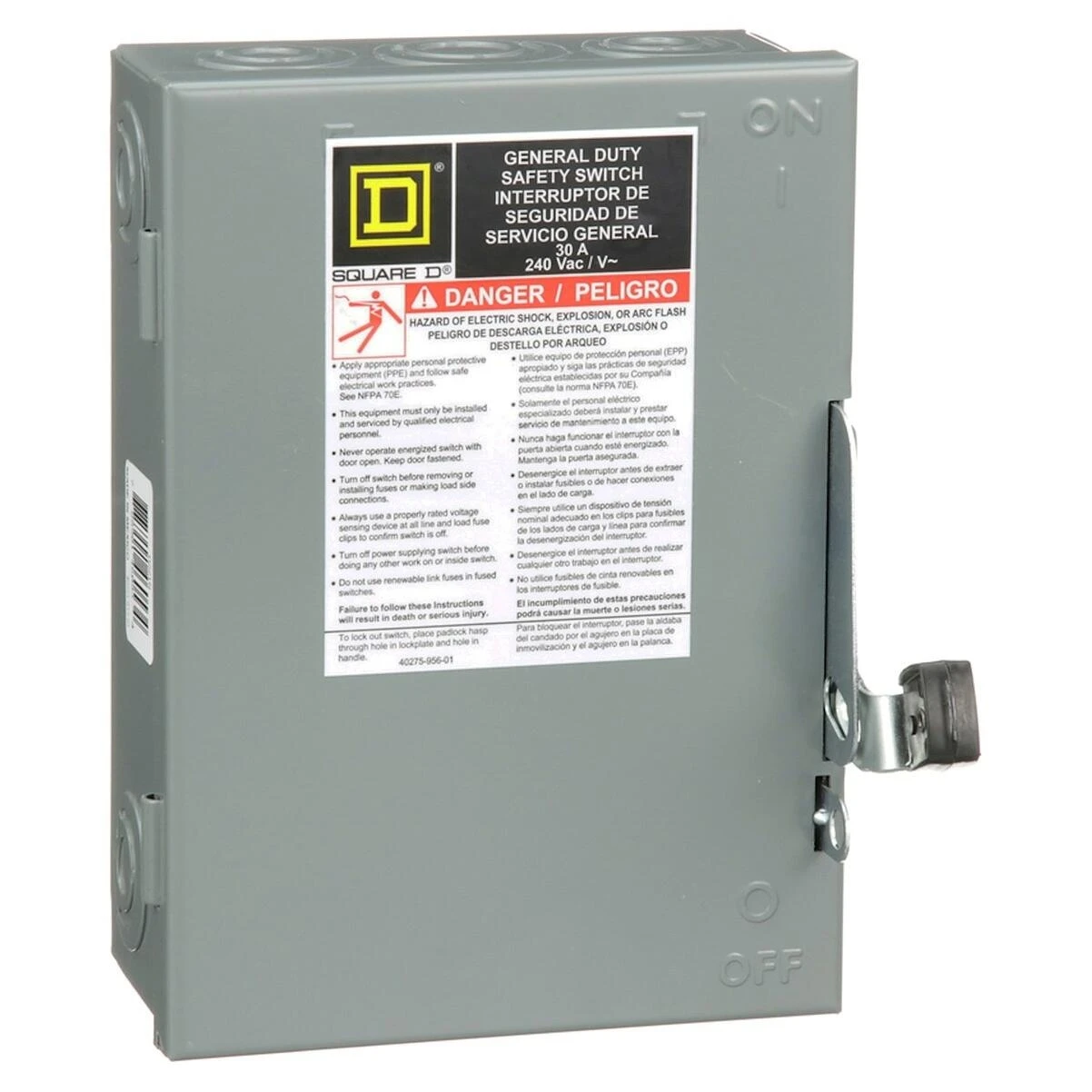

Square D D211NCP Safety Switch, 2-Pole, 30 Amp, 120/240V

The Square D D211NCP is a 2-pole general duty safety switch designed to open or close an electrical circuit in residential and commercial applications. This fusible disconnect switch provides dependable protection and control for lighting loads, air conditioning units, appliances, and other essential equipment in single-phase electrical systems rated at 120/240 volts.

Built for durability and economy, this safety switch delivers reliable general duty performance in a compact form factor. The 30-ampere rating and 1½ horsepower capacity make it suitable for a wide range of residential and light commercial installations. When equipped with an optional service grounding kit, it can also function as service entrance equipment.

Features and Benefits

• 2-Pole, 3-Wire Design: Features 2 blades and fuseholders with a factory-installed solid neutral for safe, efficient circuit control.
• Plug Fuse Protection: Uses plug type fuses with spring-reinforced plated copper fuse clips for reliable overcurrent protection.
• Flexible Conductor Compatibility: Lug terminals accept both aluminum and copper conductors, offering installation flexibility.
• NEMA 1 Indoor Enclosure: Metallic enclosure rated for indoor use.
• Code Compliance: ANSI certified and UL listed (File E2875) to meet or exceed NEMA Standard KS1.
• Service-Ready: Compatible with the optional PK3GTA-1 field-installable service ground bar kit for service entrance applications.

Specifications

• Brand: Square D
• Model: D211NCP
• Type: General duty safety switch (fusible disconnect)
• Poles: 2-pole, DPST
• Amperage Rating: 30 amps
• Voltage: 120/240 VAC, single phase
• Horsepower Rating: 1½ HP
• Wire Configuration: 3-wire with 2 blades and 2 fuseholders
• Fuse Type: Plug type
• Terminal Type: Lugs (aluminum or copper)
• Enclosure: Metallic NEMA 1, indoor use
• Certifications: UL listed, ANSI certified
