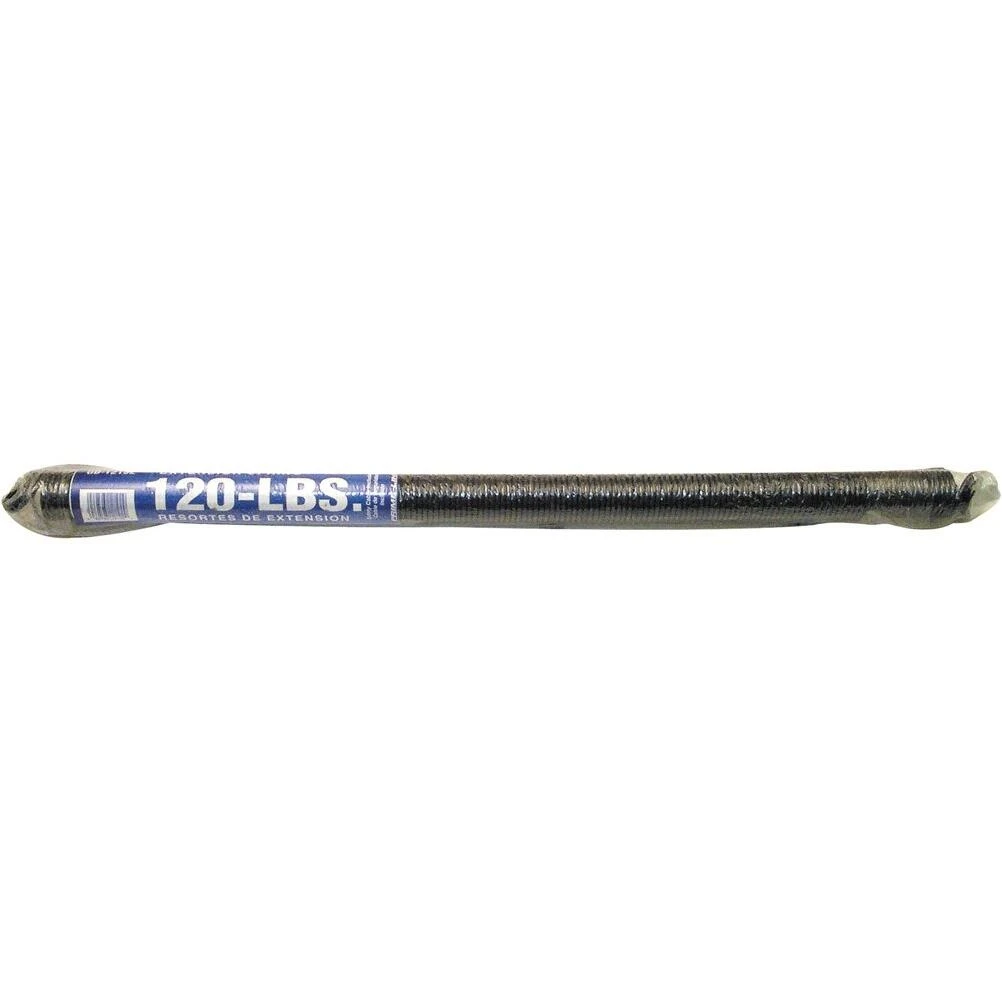

Prime-Line GD12192 Garage Door Extension Spring, 25 In., 120 Lb.

Prime-Line garage door extension springs are heavy-duty replacements designed for residential sectional garage doors up to seven feet tall. These springs work in pairs to lift doors weighing up to 120 pounds, making them ideal for standard two-panel, four-section garage doors. When one spring breaks or weakens, both sides should be replaced simultaneously to prevent uneven door movement and ensure balanced operation.

Extension springs are replacements for worn or broken garage door springs. These Prime-Line springs are rated for 10,000 cycles of reliable operation, providing season-after-season dependability for busy households.

Features and Benefits

• Safety Cable Included: A 1/8 inch galvanized carbon steel aircraft cable runs through the spring to contain it safely in case of breakage, preventing dangerous spring failure.
• Double Loop Ends: Reinforced loop ends provide extra durability and a secure connection to mounting hardware.
• 10,000 Cycle Rating: Heavy-duty construction ensures reliable performance through thousands of open and close cycles.
• Galvanized Carbon Steel: Durable galvanized finish for long-lasting performance.
• Green Color Tip: Identifies this spring as a 120-pound capacity model.
• Standard Size: 25-inch length with 1-19/64 inch outer diameter fits most residential door configurations.

Specifications

• Brand: Prime-Line
• Model: GD12192
• Length: 25 inches
• Outer Diameter: 1-19/64 inches
• Lift Rating: 120 pounds (two springs required)
• Material: Galvanized carbon steel
• End Style: Double loop
• Safety Cable: 1/8 inch galvanized carbon steel aircraft cable included
• Color Tip: Green
• Cycle Rating: 10,000 cycles
• Quantity: One spring (two required per door)

Installation

Always replace springs on both sides of the door when one side breaks to avoid uneven door movement. Please refer to line art for dimensions and compare with your needs before purchasing.
