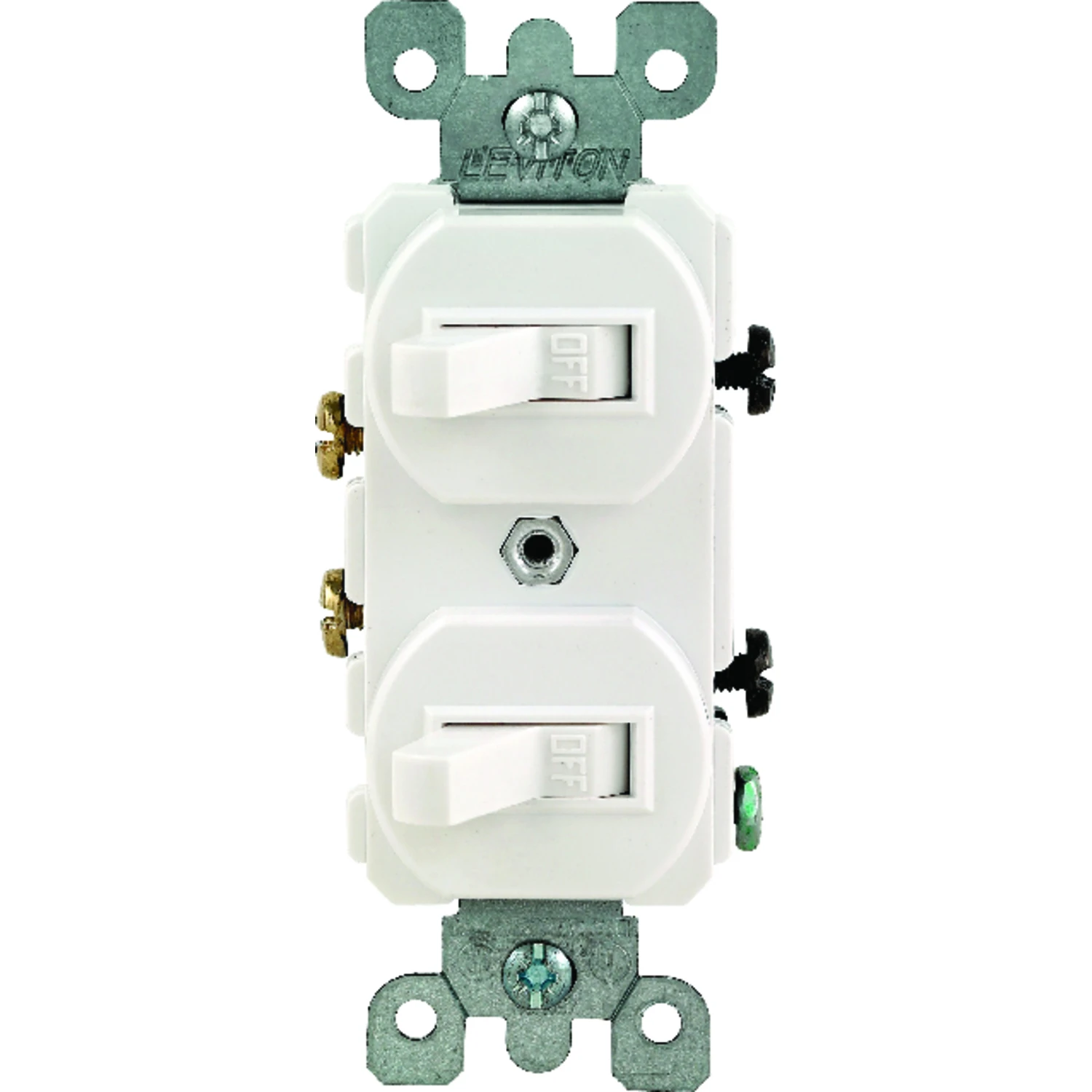

Leviton R62-05224-2WS Duplex Combination Double Switch, 15 A, 120/277 V, Lead Wire Terminal, White

The Leviton R62-05224-2WS Decora duplex combination switch is a heavy-duty specification grade electrical switch designed for both residential and commercial applications. This single pole toggle switch allows you to control two separate circuits independently, making it ideal for replacing worn switches or upgrading your electrical system. Whether you're installing new lighting, wiring appliances, or managing electrical needs in apartments, houses, retail spaces, and workplaces, this switch provides reliable performance and versatility for any project.

Built with a thermoplastic housing and durable construction, this duplex switch handles the demands of high-traffic electrical areas. The break-off fins allow for 2-circuit conversion when customization is needed. Its white finish complements standard wall plates and décor while delivering consistent performance for residential and commercial electrical systems.

Features and Benefits

• Heavy-Duty Specification Grade: Built to withstand rigorous use in both residential and commercial settings, especially in high-traffic areas.
• Dual Circuit Capability: Single pole design that can be wired independently, offering flexibility for different electrical configurations.
• Break-Off Fins: Enables 2-circuit conversion for easy customization based on your specific wiring requirements.
• Lead Wire Terminals: Provides connection points for electrical installation.
• High Power Ratings: Rated for 15A at 120/277V AC, 1/2 HP at 120V, and 2 HP at 240V, ensuring compatibility with various devices and circuits.

Specifications

• Brand: Leviton
• Model: R62-05224-2WS
• Type: Decora Duplex Combination Double Switch
• Amperage: 15A
• Voltage: 120/277V AC
• Horsepower: 1/2 HP at 120V, 2 HP at 240V
• Configuration: Single Pole, Toggle Actuator
• Terminal Type: Lead Wire
• Housing Material: Thermoplastic
• Color: White
• Mounting: Wall Mount
• Operating Temperature: -40 to 65°C
• Dimensions: 4.2 in L × 1.62 in W × 1.06 in D
