Description

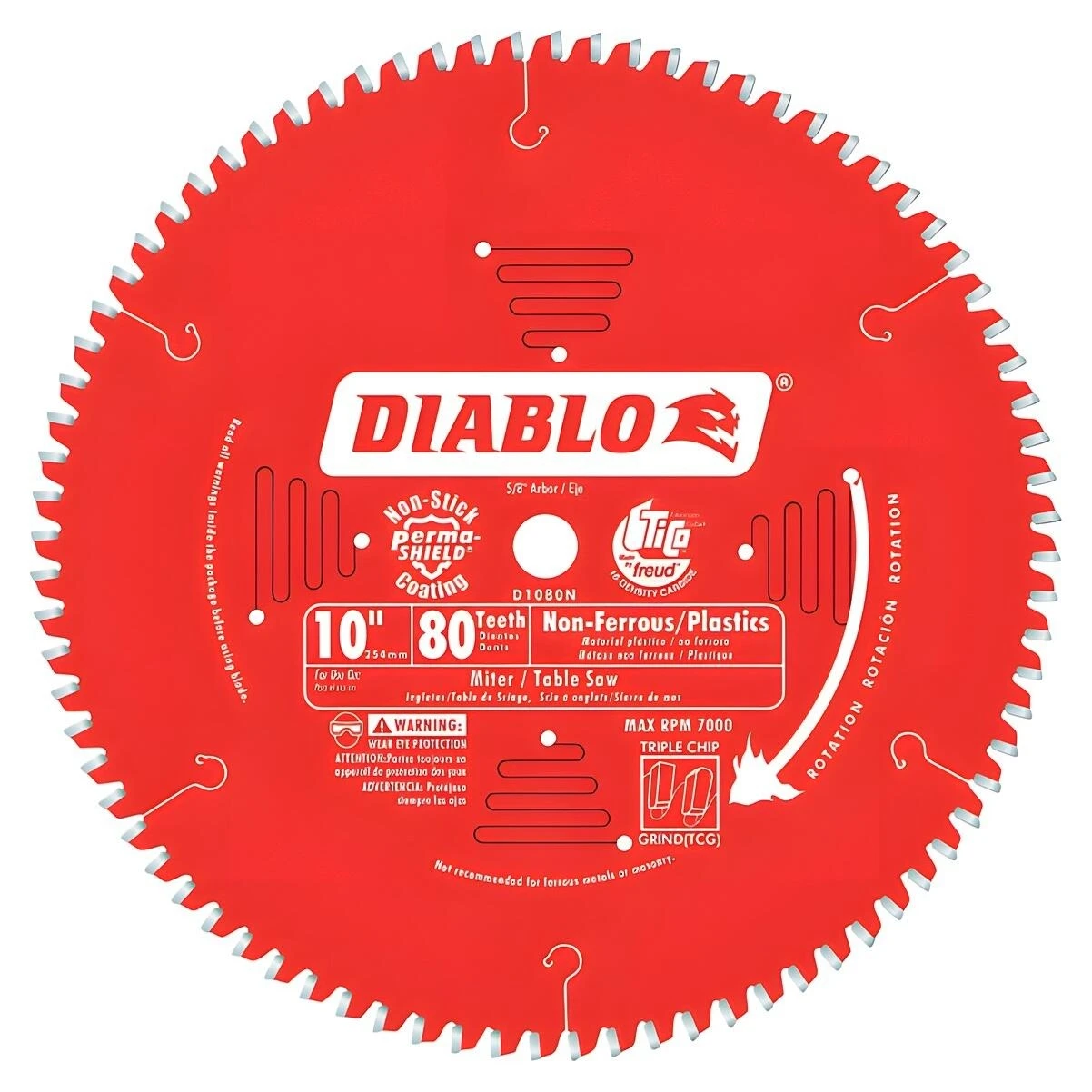

The Diablo D1080N is a 10-inch carbide circular saw blade engineered specifically for clean, precise cuts in non-ferrous metals, plastics, melamine, and wood. The Triple Chip Grind (TCG) tooth design delivers burr-free finishes on aluminum, copper, brass, and fiberglass, making it ideal for remodeling, demolition, electrical, and plumbing work. Whether you're using a miter saw, slide miter saw, or table saw—portable or stationary—this blade reduces rework and saves time on every cut.
The blade's advanced construction protects against heat, gumming, and corrosion while maintaining peak performance over extended use. Laser-cut stabilizer vents reduce vibration and enhance durability. The thin kerf design allows faster cuts with minimal resistance, while tri-metal shock-resistant brazing withstands extreme impact without damage.
Features and Benefits
- TiCo Super-Density Micro-Grain Carbide: Specially formulated for extreme cutting life and reduced wear, with clog-free performance that outlasts standard carbide in metal cutting applications.
- Triple Chip Grind (TCG) Tooth Design: Delivers clean, burr-free finishes and virtually eliminates rework on non-ferrous materials.
- Perma-SHIELD Non-Stick Coating: Protects against heat, gumming, and corrosion, keeping the blade clean and performing at its peak for longer periods.
- Laser-Cut Stabilizer Vents: Reduce vibration for enhanced durability during use.
- Tri-Metal Shock-Resistant Brazing: Allows the blade to slice through metal materials while withstanding extreme impact, ensuring maximum durability on heavy-duty jobs.
- Thin Kerf Design: Allows faster cuts with minimal resistance.
- Laser-Cut Heat Expansion Slots: Allow the blade to expand and contract without warping, maintaining straight and accurate cuts.
Specifications
- Brand: Diablo
- Model: D1080N
- Diameter: 10 inches
- Teeth: 80
- Arbor: 5/8 inch
- Kerf: 0.094 inches
- Hook Angle: -5 degrees
- Plate Thickness: 0.071 inches
- Maximum RPM: 6000
- Tooth Grind: Triple Chip Grind (TCG)
- Carbide Type: TiCo High-Density Micro-Grain
- Coating: Perma-SHIELD Non-Stick
- Brazing: Tri-Metal Shock-Resistant
- Quantity: 1 blade
Specifications
| SKU | 255277 |
|---|---|
| UPC | 008925020530 |
| Weight | 2.11 lbs |
| Package Width | 11.9 in |
| Package Length | 13.95 in |
| Package Height | 0.4 in |
| Model Number | 255277 |
| Brand | Diablo |
